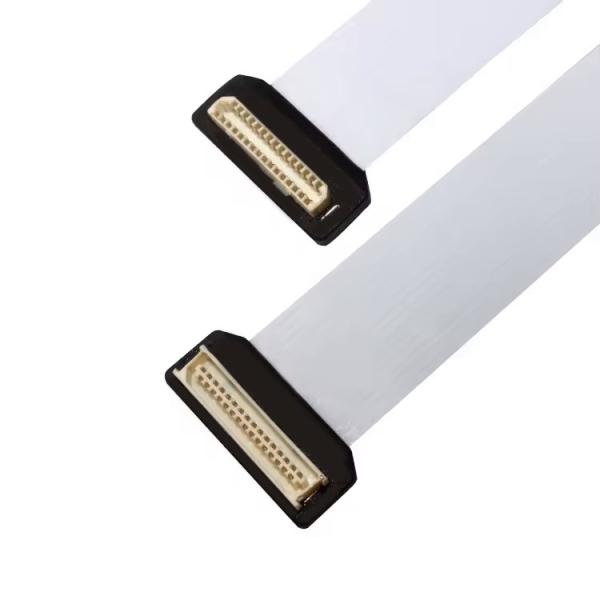

DF9 Series DF9 31P Industrial grade medical cable LCD cable 31pin
female hotbar flat cable
DF9 Series DF9 31P cable:
| Item | Specification | Condition |
|---|
| Contact Resistance | 50 mΩ max | Measured at 100mA |
| Insulation Resistance | 500 MΩ min | Measured under DC 100V |
| Withstand Voltage | No spark or insulation breakdown | AC 250V for 1 minute |
| Mating Durability | Contact Resistance: 50 mΩ max | Tin: 30 cycles, Gold: 100 cycles |
| Vibration Resistance | No electrical interruption for 1 μs | Frequency: 10 to 55 Hz, amplitude: 0.75 mm, 2 hours in each of 3
directions |
| Moisture Resistance | Contact Resistance: 50 mΩ max, Insulation Resistance: 500 MΩ min | Exposed in an environment with 40 ± 2°C and 90-95% humidity for 96
hours |
| Temperature Cycling | Contact Resistance: 50 mΩ max, Insulation Resistance: 500 MΩ min | Temperature cycle: -65°C → +5°C to +35°C → +125°C → +5°C to +35°C,
5 cycles |
| Solder Heat Resistance | No dissolution or resin damage affecting performance | Soldering iron temperature of 380°C for 5 seconds |
1. Compliant with VESA FPDI-1 Interface Connector Standard
The 31 and 41pos. connectors conform to the FPDI-1 standard
connector specifications for flat panel display
interfaces by the U.S. VESA. VESA :Video Electronics Standards
Association FPDI-1:Flat Panel Display Interface
2. Complete Mis-insertion Prevention
The trapezoidal mating port prevents mis-insertion at a compact
size.
3. Friction Lock
Friction lock provides reliable insertion and removal.
4. Smooth Insertion and Removal
Contact portion is made of material that does not have a fractured
surface for smooth insertion and removal.
5. Two Standard Types of Plating Available
Plating is available in both tin and gold for selection based
Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring
experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs.
For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3
days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days
and longest 1 month.
For big order, as we need to confirm all things include materiel
preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity,
testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days
without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is
potential product in the market a
nd promote it, and you will have the right to resell the product in
your district.
2. Additional fee discount, cheaper price on purchasing products at
smaller quantity.
3. We can offer assist on promotion images, and make images with
clients' logo
Q7. How long is warranty for the cable, and if defective or faulty,
how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big
quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order
1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than
0.1%, please contact sales and
offer images, and we will solve your problem in the way of
replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free
exclusive of shipment freight.
