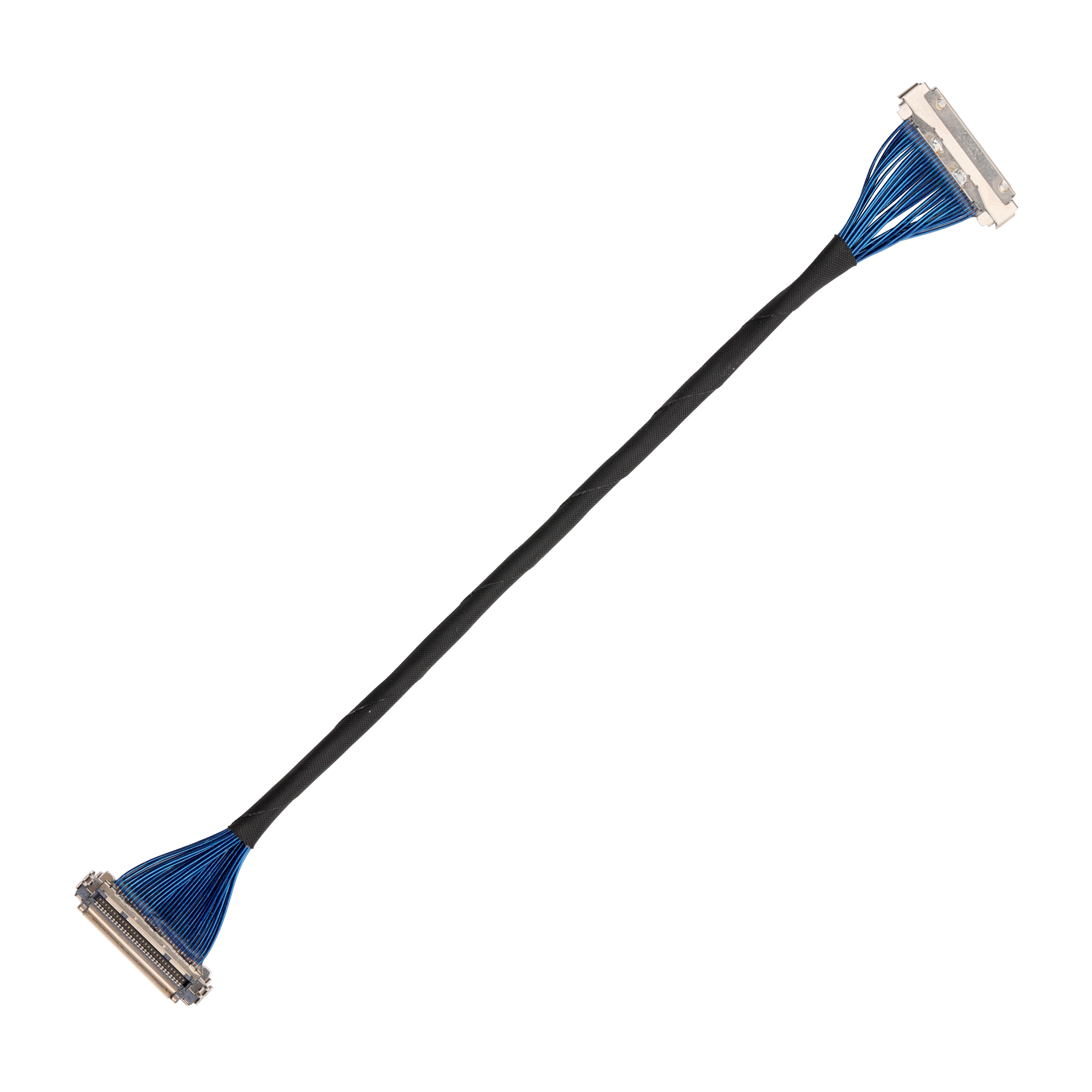

Micro Coaxial Cable 20877 20878 3488 20879 0.4mm Pitch 30pin Edp
Cable
Prevent EMI Leakage with 360˚ EMI Shielding and Multi-point Ground
Design
High Mating Retention Force with Mechanical Locking Cover
High Contact Reliability
| Contact pitch | |
| Max Height | |
| Depth | |
| Width Formula | With Lock Cover : 5.0 + (0.4 * ?p); Without Lock Cover : 4.2 + (0.4
* ?p) mm |
| Current rating | 0.1A AC/DC [AWG #44] Per Contact
0.24A AC/DC [AWG #42] Per Contact
0.3A AC/DC [AWG #40] Per Contact
0.5A AC/DC [AWG #38] Per Contact
0.8A AC/DC [AWG #36] Per Contact
1.0A AC/DC [AWG #34] Per Contact |
| Applicable Standards (Reference Only) | Thunderbolt™ 3 (20 Gbps/lane)
USB® 3.1 Gen 1 (5 Gbps)
USB® 3.1 Gen 2 (10 Gbps)
eDP (2.7 Gbps)
eDP HBR 2 (5.4 Gbps)
eDP HBR 3 (8.1 Gbps)
HDMI® 2.0 (6 Gbps)
MiPi Gear 3 (5.8 Gbps)
V-By-One HS 1.4 (4 Gbps) |

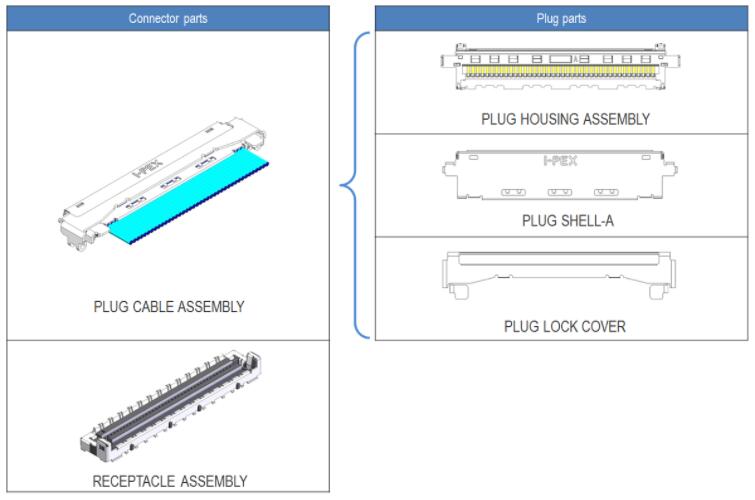

| PLUG FOR CABLE ASSEMBLY | 30 | 20877-030T-01 | | 40 | 20877-040T-01 | | Plug parts | PLUG HOUSING | 30 | 20878-030T-01 | | 40 | 20878-040T-01 | | PLUG SHELL | 30 | 3488-0301 | | 40 | 3488-0401 | | PLUG LOCK COVER | 30 | 3493-0301 | | 40 | 3493-0401 | | RECEPTACLE | 30 | 20879-030E-01 | | 40 | 20879-040E-01 |
|
Micro coaxial Cable assemblies, eDP Cable assembly, LVDS Cable
Assembly, micro coaxial cable,
Fine pitch Wire Harness manufacturers
0.4 mm pitch, right angle vertical mating type, micro-coaxial cable
connector with EMI shielding design (op
tional mechanical lock) - High-data-rate transfer, perfect for
Thunderbolt™ 3 (20 Gbps/lane) applications -
Prevent EMI leakage by 360-degree EMI shielding and multi-point
ground design - High contact reliability
with 0.65 mm wiping length - High mating retention force with
mechanical lock (optional)
