20453-230T-03 20454-230T 2574-0302 2576-130-00
20455-030E-76 lvds micro coaxial cable

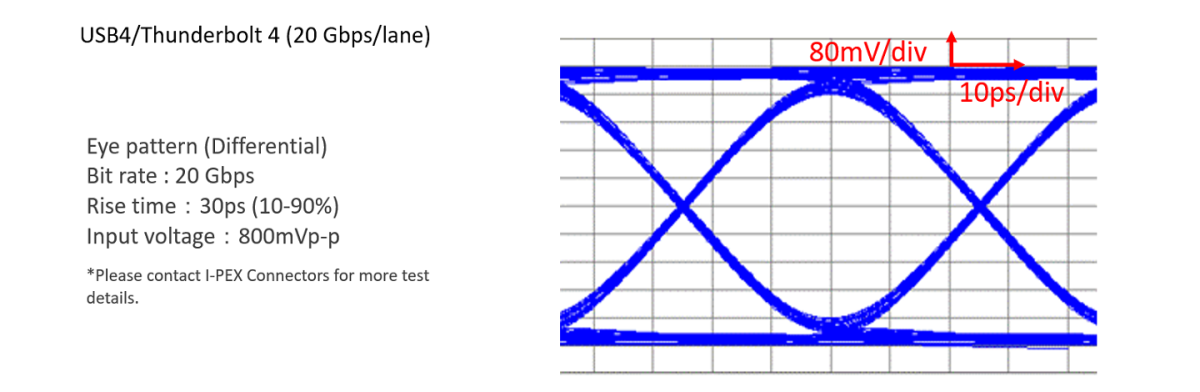

High-Data-Rate Transfer, Ideal for USB4/Thunderbolt 4 (20
Gbps/lane) Applications
Mechanical Locking Bar Prevents Incomplete Mating and
Back-out/Un-mating
Multiple Connector Options With VS Series
Available Pin Count:
20 30 40 50
Micro-Coaxial Cable (AWG):
#36 #38 #40 #42 #44 #46
Mating Direction:
Horizontal
| Mating Direction | Horizontal |
| Contact pitch | 0.50 mm |
| Height | 1.10 Max (1.00 Nom.) , |
| Depth | 5.80 mm |
| Width Formula | 7.55+(0.5*?p) mm |
| Pin count | 20 30 40 50 |
| Micro-Coaxial Cable (AWG) | #36 #38 #40 #42 #44 #46 |
| Discrete Cable (AWG) | #32 #34 #36 #38 #39 #40 #42 #44 #46 |
| Current rating | 0.1A AC/DC [AWG #44] per contact/up to 50 contacts 0.24A AC/DC [AWG
#42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per
contact/up to 50 contacts 0.5A AC/DC [AWG #38] per contact/up to 14
contacts 0.8A AC/DC [AWG #36] per contact/up to 10 contacts 1.0A
AC/DC [AWG #34] per contact/up to 6 contacts 1.0A AC/DC [AWG #32]
per contact/up to 6 contacts |
| Applicable Standards (Reference Only) | USB4 (20 Gbps/lane) USB 3.1 Gen 2 (10 Gbps) USB 3.1 Gen 1 (5 Gbps)
eDP HBR 3 (8.1 Gbps) eDP HBR 2 (5.4 Gbps) eDP (2.7 Gbps) HDMI 2.0
(6 Gbps) V-By-One HS 1.4 (4 Gbps) MiPi standards |
| Mechanical lock | Yes |
| Full shielding (ZenShield®) | No |
High-Data-Rate Transfer, Ideal for USB4/Thunderbolt 4 (20
Gbps/lane) Applications
Mechanical Locking Bar Prevents Incomplete Mating and
Back-out/Un-mating
Multiple Connector Options With VS Series
