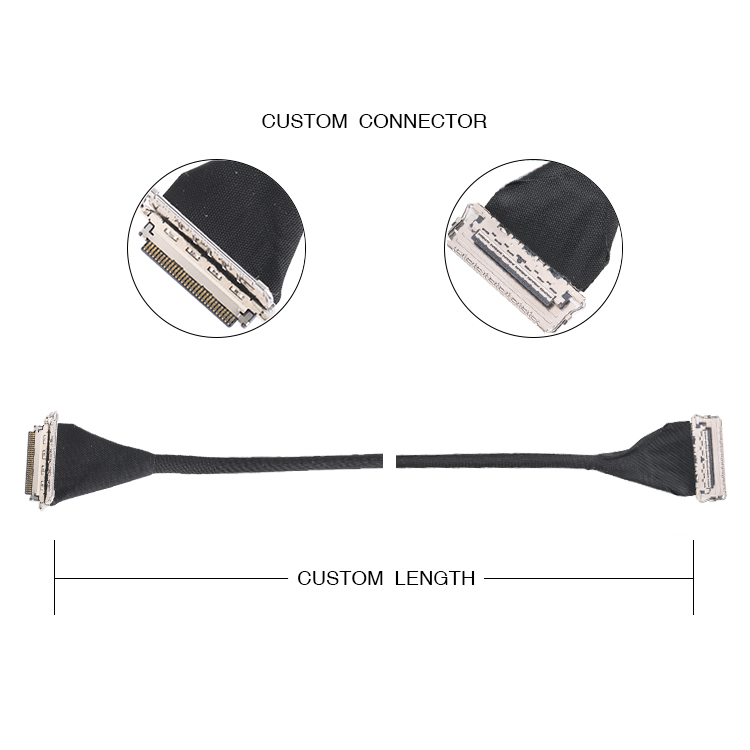

    20679 0.4mm Pitch 20pin 30pin 40pin 50pin Micro Coaxial Connector Horizontal Direction

    Ask Lasest Price
    Brand Name : Customization
    Model Number : 20679-030T-01
    Certification : UL ,ISO13485 , ISO9001.2005 , ISO14001
    Price : Contact our sales
    Payment Terms : T/T, PayPal
    Supply Ability : 15,000pcs/week
    Delivery Time : 2-10 days for samples,3-4 weeks for massive
    • Product Details
    • Company Profile

    20679 0.4mm Pitch 20pin 30pin 40pin 50pin Micro Coaxial Connector Horizontal Direction

    20679 0.4 MM Pitch 20pin 30pin 40pin 50pin Micro Coaxial Connector Horizontal Direction


    20679 0.4mm Pitch 20pin 30pin 40pin 50pin Micro Coaxial Connector Horizontal Direction

    Micro-Coaxial Cable (AWG)#36 #38 #40 #42 #44 #46
    Contact pitch0.400 mm
    Discrete Cable (AWG)#34 #36 #38 #39 #40 #42 #44 #46
    Current rating

    0.1A AC/DC [AWG #44] per contact/up to 50 contacts 0.24A AC/DC [AWG #42] per contact/up to 50 contacts 0.3A AC/DC [AWG #40] per contact/up to 50 contacts 0.5A AC/DC [AWG #38] per contact/up to 18 contacts 0.8A AC/DC [AWG #36] per contact/up to 6 contacts 1.0A AC/DC [AWG #34] per contact/up to 6 contacts

    Cable assembly and harness assembly typesLVDS cable, eDP cable, MCX cable, SGC cable

    Part Number DescriptionPin countPart Number
    PLUG FOR CABLE ASSEMBLY2020679-020T-01
    3020679-030T-01
    4020679-040T-01
    5020679-050T-01
    Plug partsPLUG HOUSING2020680-020T-01
    3020680-030T-01
    4020680-040T-01
    5020680-050T-01
    PLUG SHELL203204-0201
    303204-0301
    403204-0401
    503204-0501
    PLUG LOCK BAR2020681-020T-01
    3020681-030T-01
    4020681-040T-01
    5020681-050T-01
    RECEPTACLE2020682-020E-02
    3020682-030E-02
    4020682-040E-02
    5020682-050E-02
    20679 0.4mm Pitch 20pin 30pin 40pin 50pin Micro Coaxial Connector Horizontal Direction

    Q1. Is it a factory?
    A:Yes,we have more than 16 years of design and manufacturring experience!
    Q2. Is there any certification?
    A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
    Q3. What is our specialty?
    A:We can design products on the application.
    Q4. Do you accept OEM/ODM orders?
    A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

    1000PCs. Mould fee will be charged according to design.
    Q5. How long will it need for completing an order?
    A: For small order and products in stock, it will take less than 3 days for preparation and delive

    ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
    For big order, as we need to confirm all things include materiel preparation, production, this pro

    cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

    nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
    Q6. As long term clients, what other service we can get?
    1. New product will be offered with order, so you can see if it is potential product in the market a

    nd promote it, and you will have the right to resell the product in your district.
    2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
    3. We can offer assist on promotion images, and make images with clients' logo
    Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
    A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

    to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

    3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

    offer images, and we will solve your problem in the way of replacing with new order or refund.
    Q8. Do you accept free sample order?
    A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.

    How to contact us?
    send your inquiry details in the below, click "send" now! free sample and best price are waiting for

    you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make

    it, we will find the same product with good quantity and good price.
